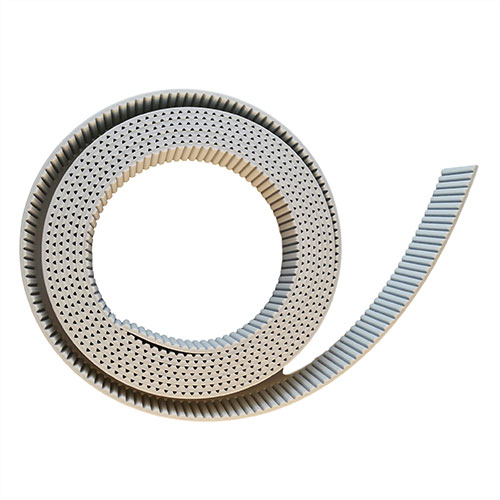

Victech PU Open end toothed belt: made of thermoplastic PU material, with high wear resistance, embedded parallel high-strength steel cord, to ensure that the belt maintains good movement ability during transmission.Open end belt is manufactured in standard roll length of 100 m and specific size is on request.
We offered special cord in order to meet customer requirements:
1. Steel Cord: Water resistance,dimensional stability,high creep resistance.
2. Stainless Steel Cord: High corrosion resistance, dimensional stability, high creep resistance.

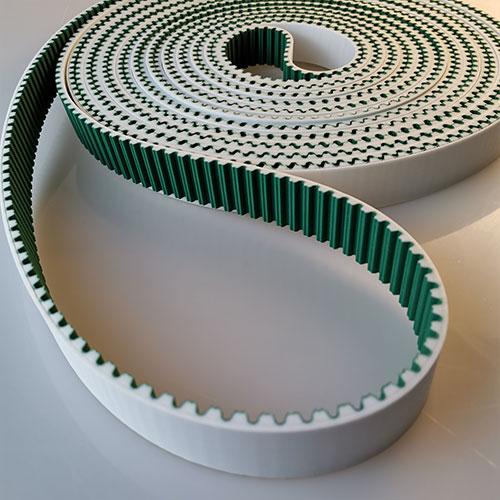

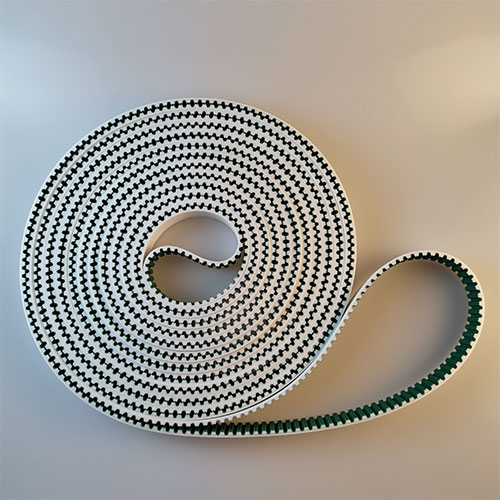

3.Timing belt with fabric：The back of the tooth surface of the timing belt and the nylon surface layer can effectively reduce the friction coefficient, enhance the meshing of the belt and the pulley, and reduce the noise and vibration
High tensile steel wire is embedded within the core wires neatly arranged uniformly, the drive belt to ensure good performance, stable and accurate transmission.
| Brand | Victech |
| ORIGIN | Wenzhou Zhejiang China |
| FUNCTION | Transpor |
| MATERIAL | PU，Steel cord/Kevlar cord/Stainless steel cord |
| CUSTOMIZE | Available |
| MODEL NUMBER | XL,L,H,XH,XXH,T5,T10,T20,AT5,AT10,AT20,HG,TG5,TG10,TG20,ATG5, ATG10,ATG20,HTD3M,HTD5M,HTD8M,HTD14M,HTD20M,S3M,S5M,S8M,S14M,RPP5M,RPP8M,RPP14M |
| TYPE | Endless Timing Belts |
| COLOR | White，Customize |
| WIDTH | Customize |
| LENGTH | Customize |
| PACKAGING | Carton |
| DEILVERY TIME | 3-7 Working Days |
| Joint Method | Welding,Pin |
| TYPE | Pitch P | Tooth height HG | Belt thickness H | Extra-Wide |
| XL | 5.08 | 1.27 | 2.30 | |
| L | 9.525 | 1.91 | 3.60 | |
| H | 12.7 | 2.29 | 4.36 | |
| XH | 22.225 | 6.35 | 11.20 | |
| XXH | 31.75 | 9.53 | 15.70 | |
| T5 | 5 | 1.20 | 2.20 | 200 |
| T10 | 10 | 2.50 | 4.50 | 500 |
| T20 | 20 | 5.00 | 8.00 | 200 |
| TYPE | Pitch P | Tooth height HG | Belt thickness H | Extra-Wide |
| AT5 | 5 | 1.20 | 2.70 | 150 |
| AT10 | 10 | 2.50 | 4.50 | 450 |
| AT20 | 20 | 5.00 | 8.00 | 200 |
| TYPE | Pitch P | Tooth height Ht | Belt thickness H | Extra-Wide |
| 3M | 3 | 1.20 | 2.40 | |
| 5M | 5 | 2.20 | 3.70 | 450 |
| 8M | 8 | 3.60 | 6.43 | 450 |
| 14M | 14 | 6.43 | 10.00 | 200 |
| 20M | 20 | 8.40 | 13.20 |
| TYPE | Pitch P | Tooth height Ht | Belt thickness H |
| S3M | 3 | 1.14 | 1.90 |
| S5M | 5 | 1.85 | 3.35 |
| S8M | 8 | 3.05 | 5.30 |
| S14M | 14 | 5.30 | 10.00 |
| TYPE | Pitch P | Tooth height Ht | Belt thickness H |
| RPPP5M | 5 | 2.00 | 3.80 |
| RPPP8M | 8 | 3.60 | 5.60 |
| RPPP14M | 14 | 6.43 | 10.00 |
Machine of tobacco
Machine of dyeing
Machine of textile
Machine of food
Machine tools
Kitchen machines
